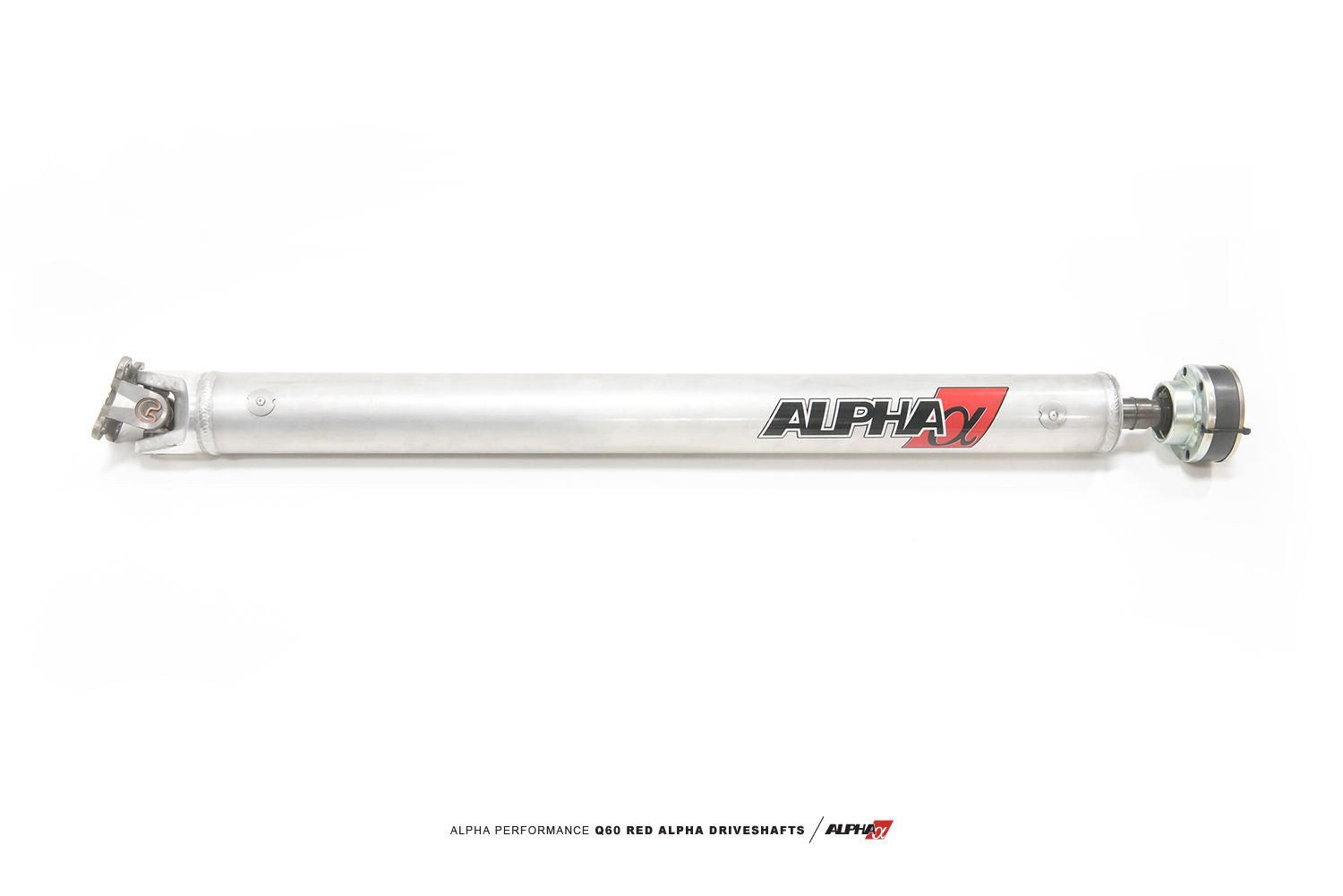

AMS ALP.28.03.0001-1 Aluminum Driveshaft INFINITI AWD Q50 / Q60 (1-Piece Dampened 3.5")
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
The Aluminum one piece INFINITI Q60 + Q50 Red Alpha Driveshaft is made from 3.5″ x .125″ wall 6061-T6 Aluminum and is rated to 3464 ft lbs of torque and spun at over 9000 RPM. Alpha’s superior one piece design eliminates the power robbing sloppy center knuckle which is a weak point in the stock system. Our one piece aluminum shafts are manufactured using a pulse welding technique as opposed to mig welding. The pulse type weld creates a lot less heat resulting in a stronger shaft. The CV used in the Alpha shaft is a purpose built high speed CV from GKN in Germany. The spline that the CV mounts to is made from 300m and is capable of transferring 6800 ft lbs of torque without failure.
Benefits
- Superior One Piece Design
- Aluminum Shaft Manufactured from 3.5″ x .125″ thick wall 6061-T6 Aluminum
- Rated to 3464 ft lbs of Torque
- High Speed Balanced and Rated for over 9000 RPM
- Pulse Welded Means Less Heat for a Stronger Shaft
- Purpose Built German High Speed CV
- High Strength Spline is 6800 ft lb tq Capable
- Solid U-joints from Dana/Spicer and without Grease Fittings
- Aluminum Shaft Rated to + 800 HP
Product Notes
- Stock – 26.85 LBS (AWD)
- Aluminum – 23.05 LBS (AWD)
- Carbon Fiber – 21.55 LBS (AWD)
