TIAL 003021 TIALVB45102 V-BAND HOUSING GT45 1.02 A/R
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

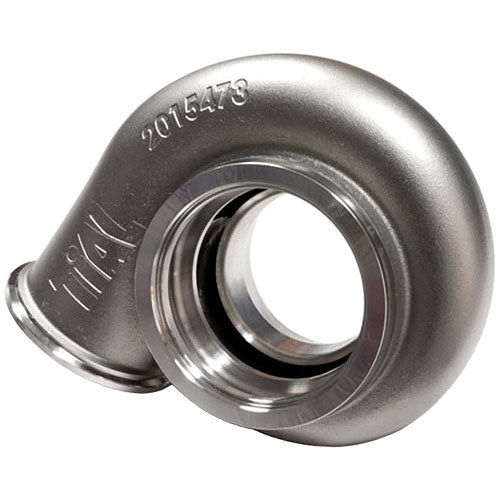

Lightweight stainless steel turbine housing for the GT/X 45 series turbocharger. Compatible with the 87mm 85 trim turbine wheel. Note: We also offer an 84 trim 87mm 10 blade contour for the GT4594R CHRA.
SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Three A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Pivoting of the turbo 360* possible
CONFIGURATION
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.75" OD, Outlet Flange: 4.00" OD
Flanges/Clamps Included? No
Housing Weight 13.3lbs (largest A/R)
Turbine Wheel 87mm 85 Trim, 87mm 84 Trim 10 Blade
INCLUDED WITH EVERY HOUSING
Turbine Housing
AVAILABLE A/R
1.02
1.16
1.30
TIAL V-BAND CLAMP AND FLANGE SYSTEM
TiAL V-Band flanges are manufactured in house
TVBFL42INLET - Inlet Flange
VC381 - Inlet Clamp
TVBFL42DC40 - Outlet Flange
VC450 - Outlet Clamp
VC450 - CHRA to Housing Clamp
