RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

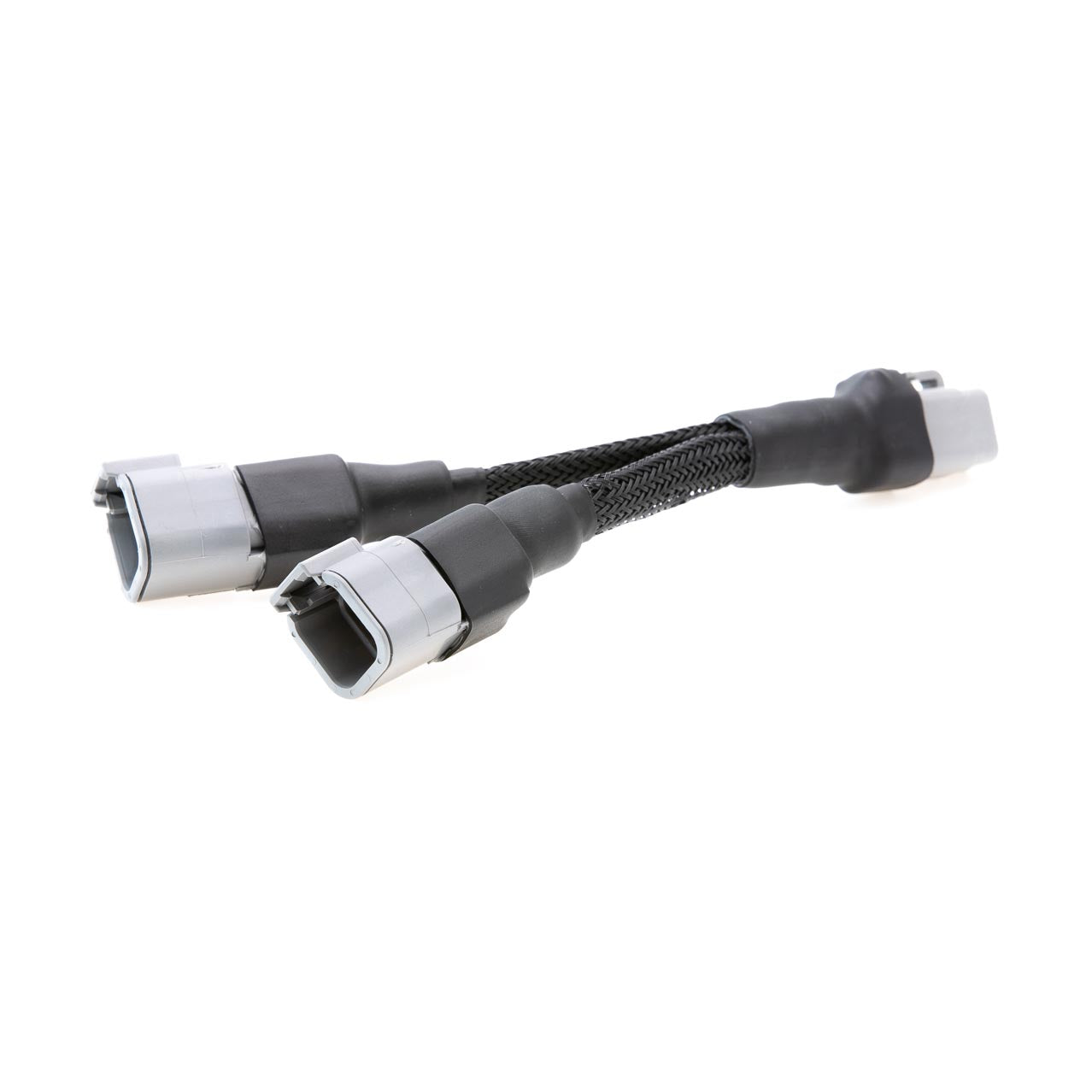

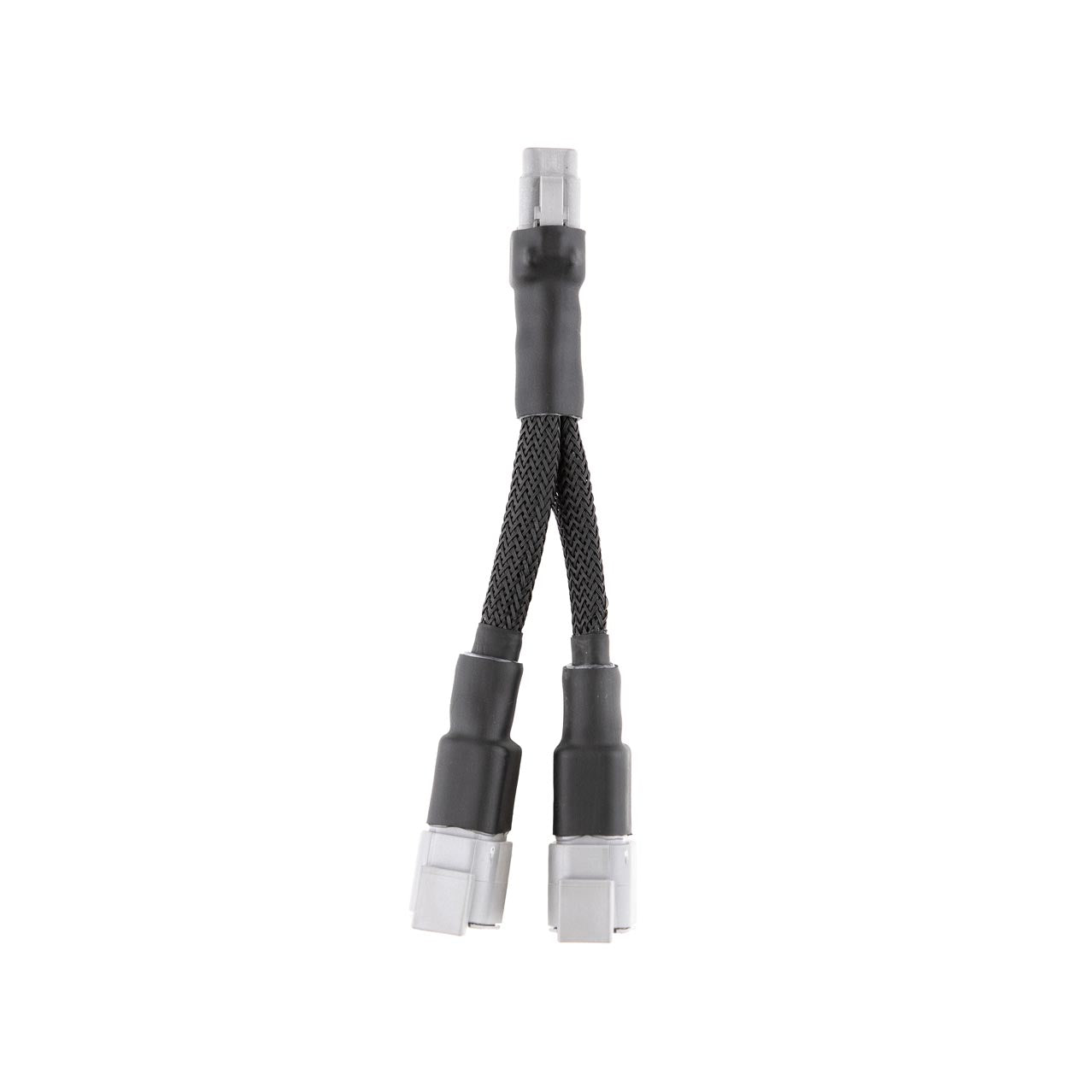

CAN Y-Adapter
Thanks to this adapter, two data loggers can be connected simultaneously to the CAN-Bus of your vehicle. Many racing series now require the use of a mandatory data logger. With the CAN-Y adapter, you can simultaneously use your Race Navigator and connect it to the CAN-Bus.
Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to the specific CAN Adapter for your car model. The 12V CAN Cable is not included in this article and must be ordered separately.
Technical data:

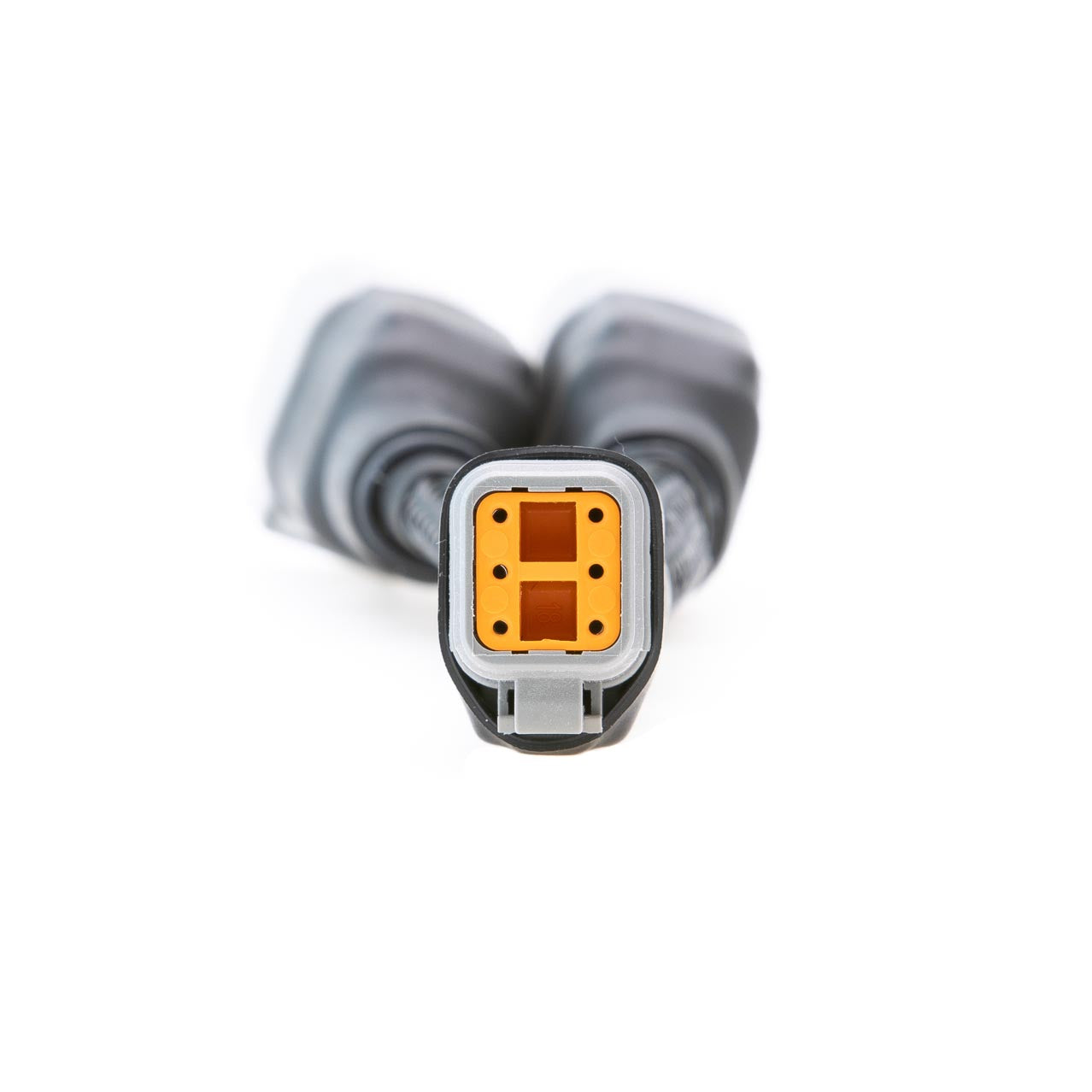

Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low

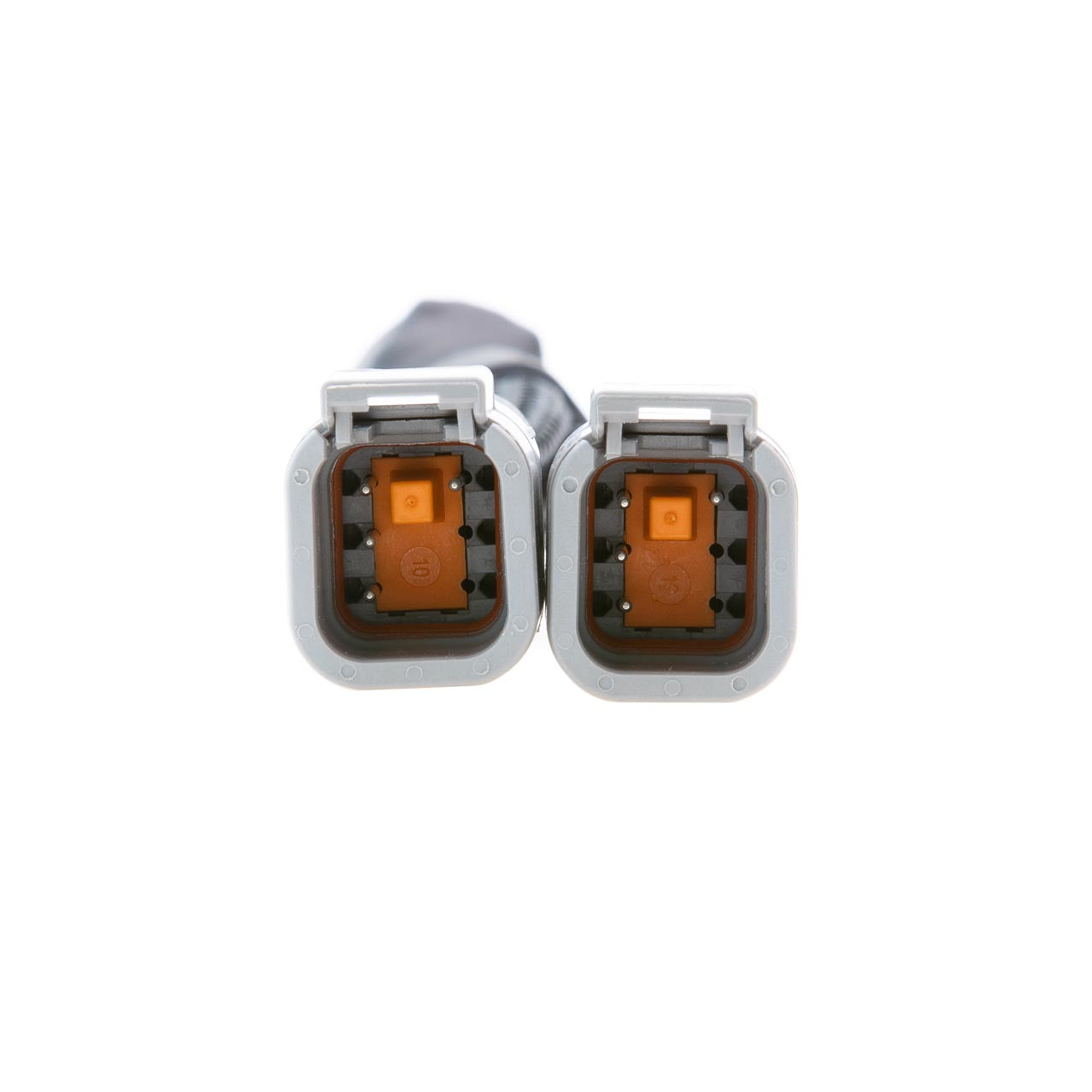

Pinout DTM 06-6S
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
