FORGE FMTIA11 Turbo Inlet for HYUNDAI i20N 2021
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

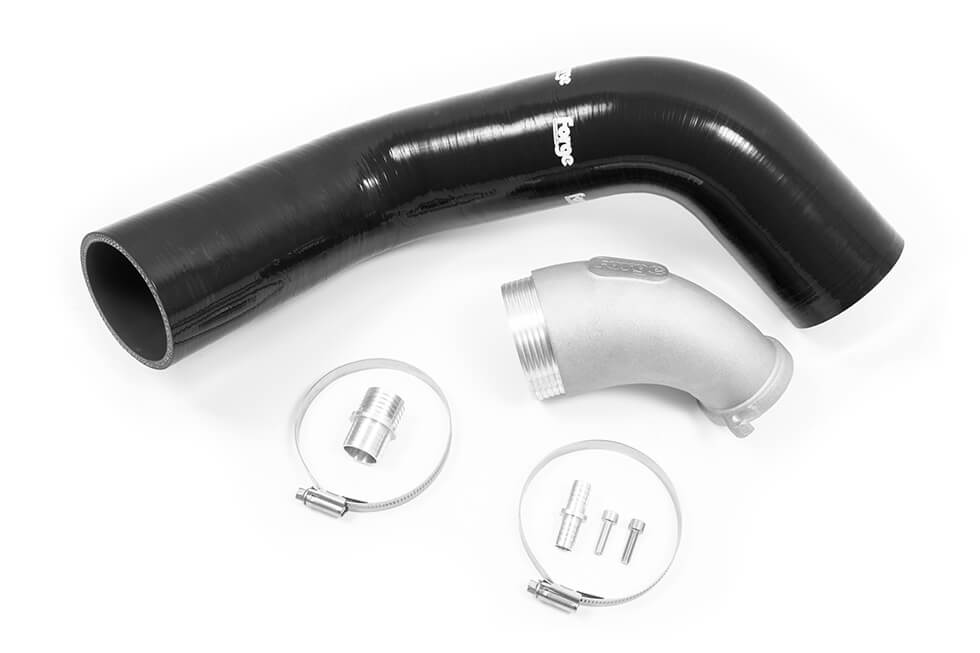

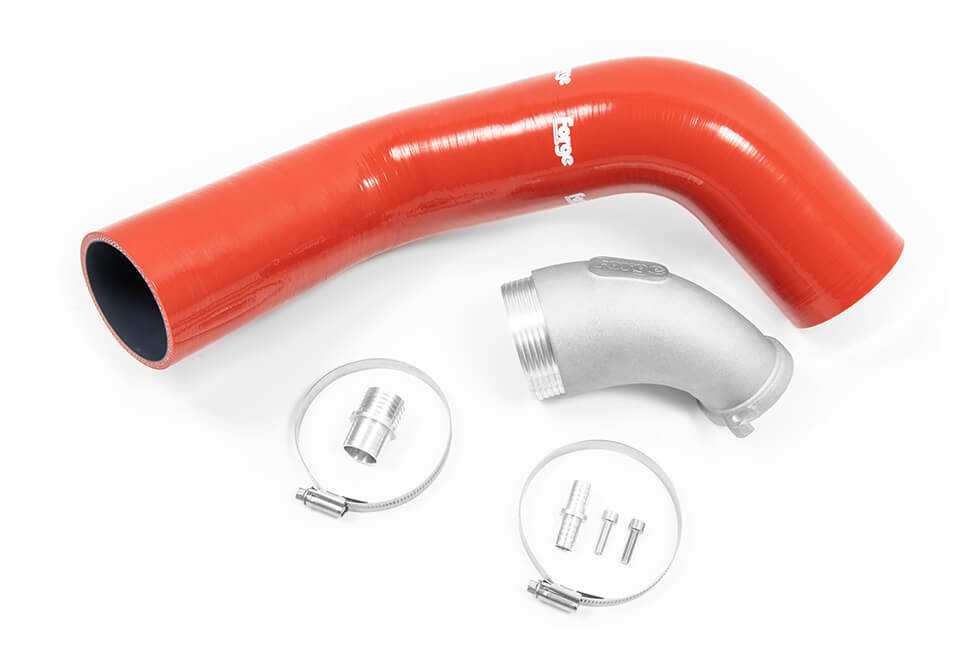

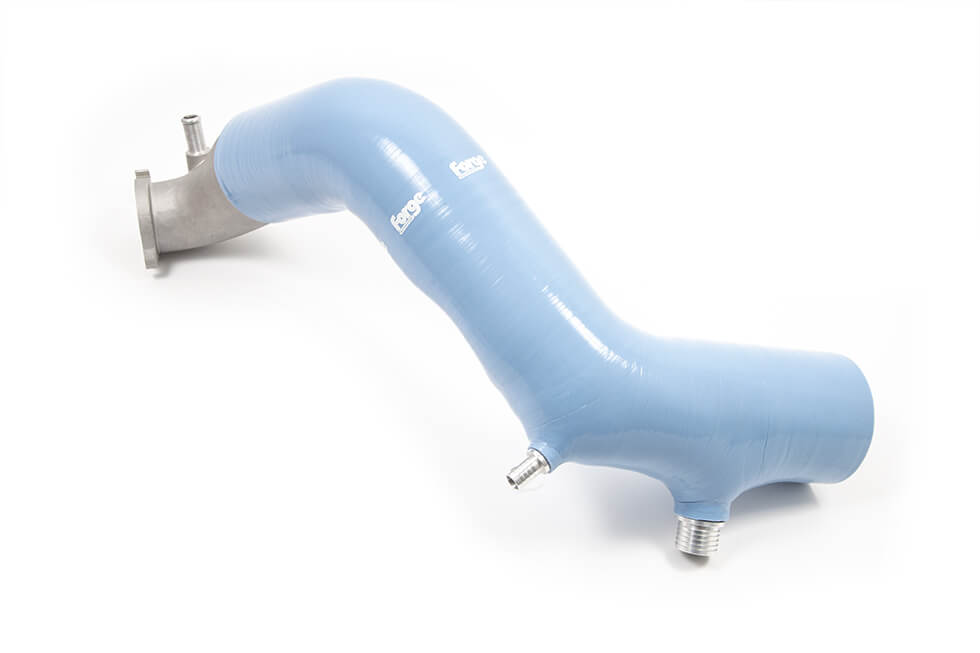

Available in black, red and blue, the turbo inlet will not only enhance your Hyundai's performance, but also change the look and aesthetics of your vehicle's engine bay.
The size of the inlet elbow has increased by over 170% to maximise the amount of air that can physically flow to the turbo from the inlet tract. The OEM factory alloy cast elbow is small, so Forge knew that this would be the key component to target as tuners start to increase the boost levels and performance output of the 1.6l turbocharged combustion engine. As well as this, the plastic OEM inlet hose has ribs and steps within the bore, causing detrimental turbulence while disturbing and slowing the airflow. By removing the ribs and steps, the larger Forge Motorsport silicone turbo inlet hose reduces the amount of turbulence over the standard item, enabling better airflow.
Why do Forge use silicone?
In the development process Forge tested an oversized aluminium pipe and found that it started to show signs of heat soak, this had a detriment to the impressive initial power gains. Forge also found after the third pull on the Dyno, the alloy pipe conducted too much heat on this application and started to decrease the gains. When using silicone, heat cannot be conducted as well, therefore even after six pulls, the silicone hose stayed at a steady temperature and did not decrease the power whatsoever.
The turbo inlet adaptor improves your vehicles airflow in several ways; designed in a similar way to a conventional velocity stack, it routes the air directly into your turbo charger and allows more air to be compressed due to its larger capacity, this has a positive effect when accelerating your vehicle after long deceleration, or in-between gear changes, due to more air being kept within the intake system.
Dyno Results
Testing was completed using Performance Remap in Gloucester with their VTEC 4-wheel drive dynamometer, this was to ensure all data is achieved with results as accurately as possible by an independent tuner.
As you can see from the dyno results below, peak power was increased from stock by nearly 7 BHP and 12NM of torque when mated to the OEM airbox and standard factory filter. The best news is that there are significant gains across the entire rev range, meaning that the car will pick up quicker and pull the whole way through to redline. TIA11 also benefits from a 17NM of power gain between 2500 RPM and 3000 rpm, this is right as the power comes in and can really change the feel and power delivery when behind the wheel.
Testing on the dyno certainly represents the benefits from such a well-engineered product; this coupled with Lifetime Warranty is just the reason to choose Forge for your Hyundai’s performance hardware.
