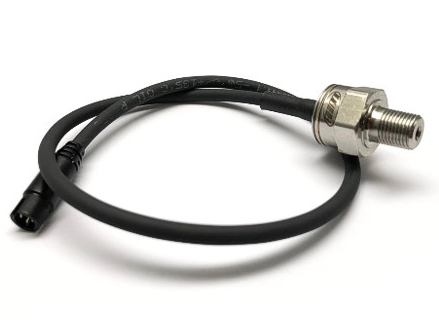

AIM X05PSA00050P18AK AiM pressure sensor 0-50 PSI Absolute
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AiM 0-5bar absolute pressure sensor is suitable for manifold air pressure reading (MAP), being able to
read depressions up to -14.5 PSI in relation with atmospheric pressure, additionally to absolute
pressures up to 35.5 PSI.
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - 1/8 NPT
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
