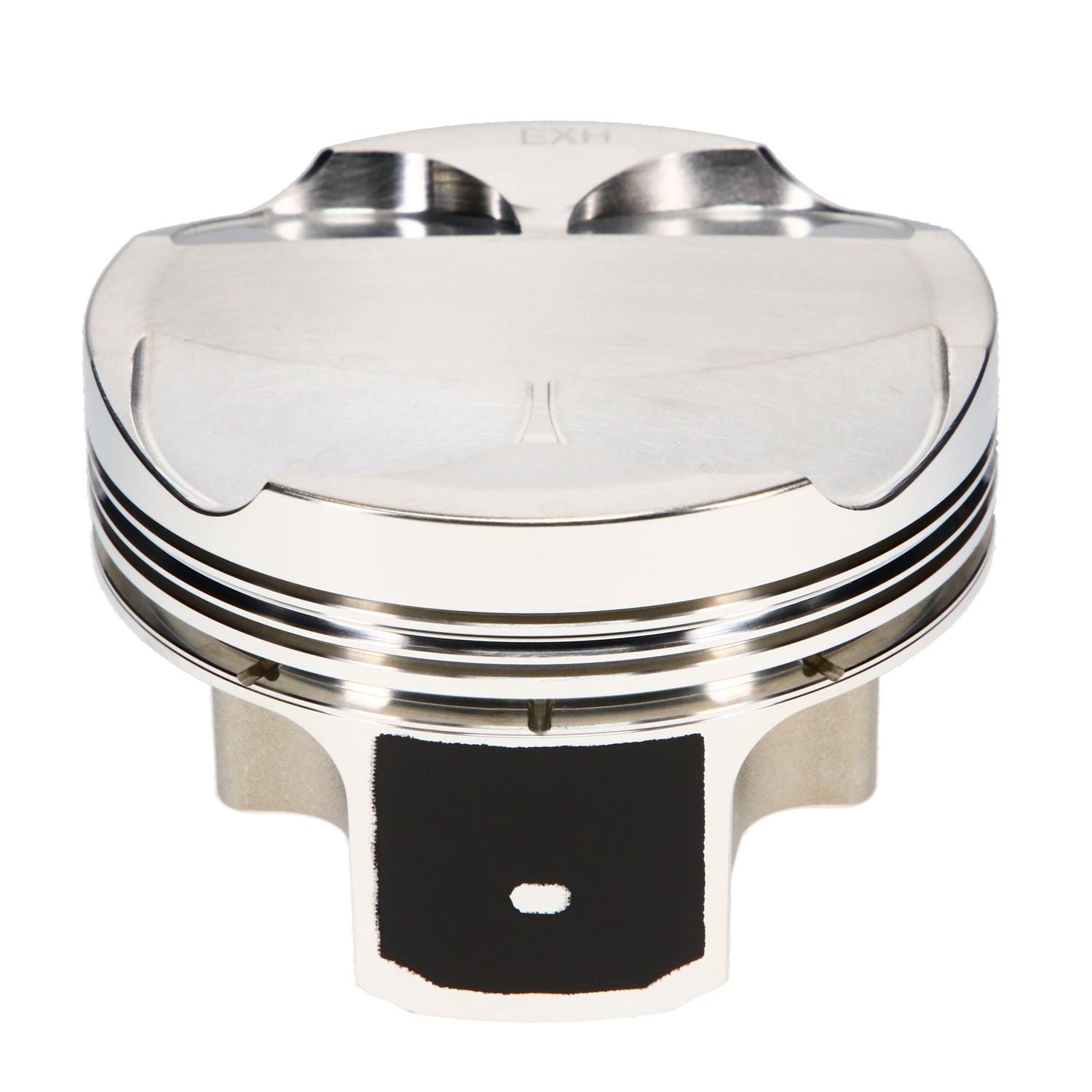

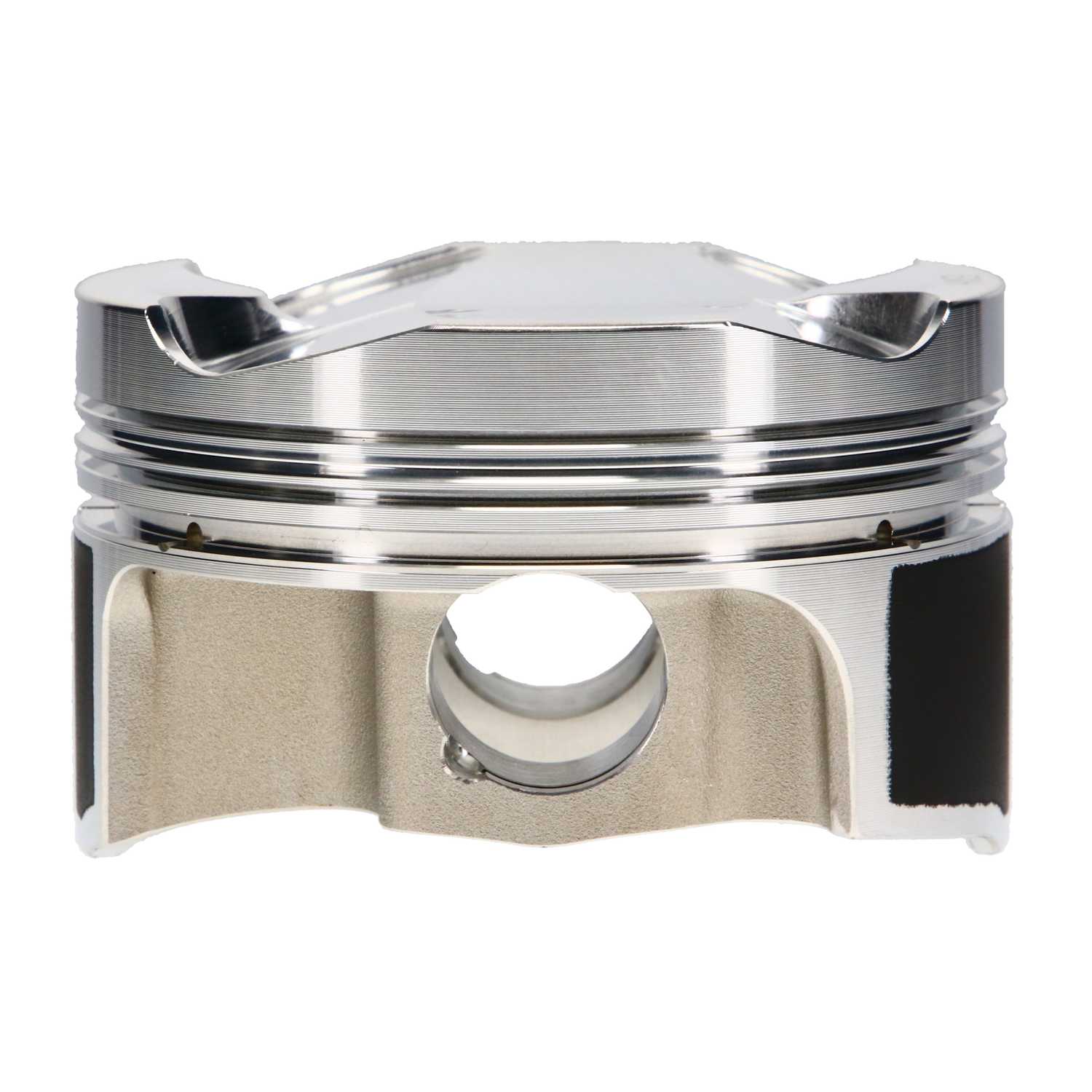

JE 297184 Pistons kit BMW S50B30US 12.5 (Set of 6 pic) Bore 86,50 Oversize 0,50 Stroke 85,80 CR12.5:1
Available on request
SKU
297184
1 701.70 €
Price including German VAT
1 430.00 € + 271.70 € (19%)
DESCRIPTION:
Piston Set, 2618, Inv Dome/Dish, 3.4055 Bore, 1.291 CD, 0.866, Pin Dia, Set of 6.
| Bore (in) | 3.406 |
|---|---|
| Bore (mm) | 86.5 |
| Top Compression Ring Thickness | 0.0400 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.111 |
| Forging Type | FSR |
| Volume (cc) | -5.00 |
| Series | JE Pistons |
| Piston Head Type | Inv Dome/Dish |
| Pin Diameter (IN) | 0.866 |
| Compression Height | 1.291 |
| Make | BMW |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JG1001-3405 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.063 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 866-063-MW |
| Retainer Diameter (IN) | 0.866 |
| Replacement Single Piston | 297184S |
| Replaced By | 288923 |
| Piston Pin Inside Diameter | 0.566 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Piston Avg Wt | 305 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 866-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 22.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.030 |
| Brand | JE Pistons |
