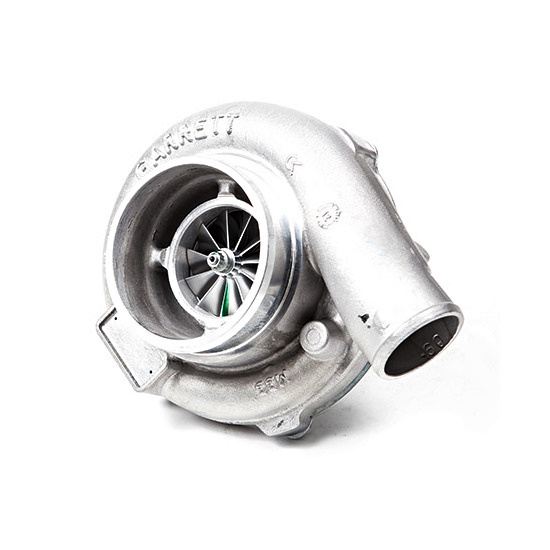

GARRETT 836042-5003S Turbocharger GTX3076R w/o Housing Kit
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Garrett's ball bearing cartridge has proven its worth in the highest level of motorsports where it has been the bearing system of choice in CART FEDEX ChampCar Series, 24 Hours of Le Mans, Pikes Peak International Hill Climb, World Rally Championship, and most recently Drag Racing. These premier racing customers demand no less than the best in durability, reliability, and power on demand. One key contributor to this performance lies in the ball bearing cartridge where it is, by design, surrounded by a thin film of oil. The oil film damps out destructive vibrations that would otherwise compromise turbo durability.
|
Powershift:
Horsepower: 360-640
Displacement: 1.8L - 3.0L
- Forged, fully-machined compressor wheel featuring next generation aerodynamics
- Dual ball bearing, oil & water-cooled CHRA
- Ported shroud compressor housing to increase surge resistance
- Oil line interchageable with GT3076R
- GTX3076R is sold without turbine housing, includes CHRA & compressor housing.
- Turbine housing kits are available
Stock Compressor housing is T04E Frame (same as GT3076R) and has 4" inlet and 2" outlet
Grrett info
| Turbo | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Ind Whl Dia(mm) | Exd Whl Dia(mm) | Trim | A/R | Whl Dia(mm) | Trim | A/R |
| 803713-1 | 700177-42 | 58.00 | 76.60 | 58 | 0.60 | 60.00 | 84 | 0.00 |
Options Housing
771300-0004 = 1.06a/r GT30R
771300-0005 = .82a/r GT30R
771300-0006 = .63a/r GT30R
740902-0036 Turbine Hsg Kit O/V V-Band / V-Band 0.61 A/R (Ni-Resist)
740902-0003 Turbine Hsg Kit O/V T3 / Bolted 0.63 A/R
740902-0023 Turbine Hsg Kit Div V-Band / V-Band 0.83 A/R (Ni-Resist)
Applicable Garrett P/N's:
| Turbo Part | CHRA Part |
| 803713-5001S | 700177-5042S |
| 803713-1 | 700177-0042 |
| 700177-42 |
